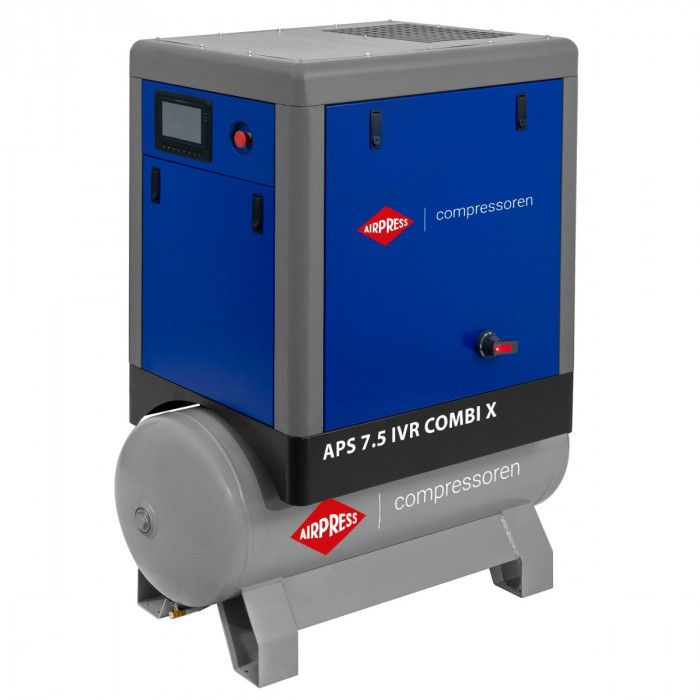

Screw Compressor APS 7.5 IVR Combi X 10 bar 7.5 hp/5.5 kW 170-760 l/min 200 l
Nicht lieferbar
The APS 7.5 IVR Combi X compressor from Airpress has a capacity of 7.5 hp and 5.5 kW. At 10 bar the compressor has a capacity of 690 liters per minute, at 7 bar this is 770 liters per minute. With a 200 liter boiler, it is a fairly compact compressor of 145 by 70 by 148 cm.
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 369907-IVR |
|---|---|
| EAN 13 | 8712418372328 |
| Length (mm) | 1450 |
| Width (mm) | 670 |
| Height (mm) | 1474 |
| Weight (netto) (kg) | 260,00 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
| Motor efficiency class | IE4 |
| Motor type | PM |
| Drive | Direct driven 1:1 |
| Control panel | MAM-6080 |
| Available languages | English, Dutch, Polish, German |
| Dryer | No |
| Air Receiver | Ja |
| Capacity air receiver (l) | 200 |
| Galvanized tank | Nein |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 |
| Free air delivery at 8 bar (l/min) | 760 |
| Free air delivery at 10 bar (l/min) | 690 |
| Minimum free air delivery (l/min) | 170 |
| Minimum free air delivery (m3/h) | 10.2 |
|---|---|
| Maximum free air delivery (l/min) | 760 |
| Maximum free air delivery (m3/h) | 45.6 |
| Noise level dB (A) (0 m) | 78 |
| Noise level dB(A) (4 m) | 58 |
| Plug type | EU |
| Cooling air volume (m3/h) | 2300 |
| Main air connection (") | 3/4 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | Nein |
| Oil capacity (l) | 6 |
| Stages | 1 |
| Start | Inverter |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
| Variable speed (IVR) | Ja |
| Minimum rpm 10 bar (rpm/Hz) | 1100 |
| Maximum rpm 10 bar (rpm/Hz) | 1960 |
| Minimum energy consumption 10 bar (kW/m3/h) | 9.4 |
| Maximum energy consumption 10 bar (kW/m3/h) | 10.8 |
Empfohlen
Beschreibung
The APS 7.5 IVR Combi X is a 5.5 kW direct driven screw compressor with variable speed and a yield of 170 to 760 liters per minute. This makes this machine unique and very versatile, especially for small air users who often still use a piston compressor. A permanent magnet synchronous motor makes the machine even more economical, especially in the low revs, so that the efficiency is significantly higher than with an asynchronous motor. Due to the compact design, this machine takes up little space, but it does have a 200 liter compressed air boiler at its disposal. By perfectly adjusting the well-arranged full color touchscreen for every situation.
The compact design and energy saving make this series extremely suitable for small industry. In combination with the Airpress OFAG2 adsorption dryer set, the compressed air quality is suitable for the food industry, pharmaceutical industry and process technology.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
