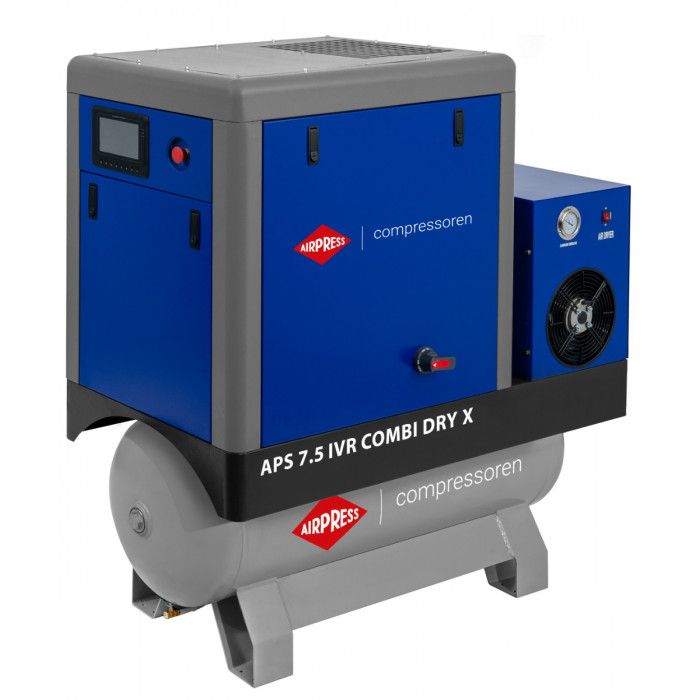

Screw Compressor APS 7.5 IVR Combi Dry X 10 bar 7.5 hp/5.5 kW 170-760 l/min 200 l
Nicht lieferbar
The APS 7.5 CombiDry compressor from Airpress has a capacity of 7.5 hp and 5.5 kW. At 10 bar the compressor has a capacity of 690 liters per minute, at 7 bar the compressor has a capacity of 770 liters per minute. This compressor is suitable for companies with low air consumption where nowadays a piston compressor is often used. The APS 7.5 CombiDry X measures 145 x 70 x 148 cm (l x w x h) and weighs 280 kg.
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 369957-IVR |
|---|---|
| EAN 13 | 8712418372335 |
| Length (mm) | 1450 |
| Width (mm) | 670 |
| Height (mm) | 1474 |
| Weight (netto) (kg) | 280,00 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
| Motor efficiency class | IE4 |
| Motor type | PM |
| Drive | Direct driven 1:1 |
| Control panel | MAM-6080 |
| Available languages | English, Dutch, Polish, German |
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Air Receiver | Ja |
| Capacity air receiver (l) | 200 |
| Galvanized tank | Nein |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 |
| Free air delivery at 8 bar (l/min) | 760 |
| Free air delivery at 10 bar (l/min) | 690 |
| Minimum free air delivery (l/min) | 170 |
|---|---|
| Minimum free air delivery (m3/h) | 10.2 |
| Maximum free air delivery (l/min) | 760 |
| Maximum free air delivery (m3/h) | 45.6 |
| Noise level dB (A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 43 |
| Plug type | EU |
| Cooling air volume (m3/h) | 2300 |
| Main air connection (") | 3/4 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | Nein |
| Oil capacity (l) | 6 |
| Stages | 1 |
| Start | Inverter |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
| Variable speed (IVR) | Ja |
| Minimum rpm 10 bar (rpm/Hz) | 1100 |
| Maximum rpm 10 bar (rpm/Hz) | 1960 |
| Minimum energy consumption 10 bar (kW/m3/h) | 9.4 |
| Maximum energy consumption 10 bar (kW/m3/h) | 10.8 |
Empfohlen
Beschreibung
The APS 7.5 IVR Combidry X is a 5.5 kW direct driven screw compressor with variable speed and a yield of 170 to 760 liters per minute. This makes this machine unique and very versatile, especially for small air users who often still use a piston compressor. A permanent magnet synchronous motor makes the machine even more economical, especially in the low revs, so that the efficiency is significantly higher than with an asynchronous motor. Due to the compact design, this machine takes up little space, but it does have a 200-liter compressed air boiler and a cooling dryer. The direct drive ensures a 1 on 1 transfer from the electric motor to the screw block, so that no losses occur. All parameters can be read and adjusted in the menu of the very comprehensive but well-arranged controller which is equipped with a full color touchscreen. This allows the machine to be adjusted per situation for maximum efficiency. The service interval of 3,000 hours also ensures lower maintenance costs. This machine is very suitable for small companies that have variable air take-off but where a silent compressor with dry compressed air is required.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
