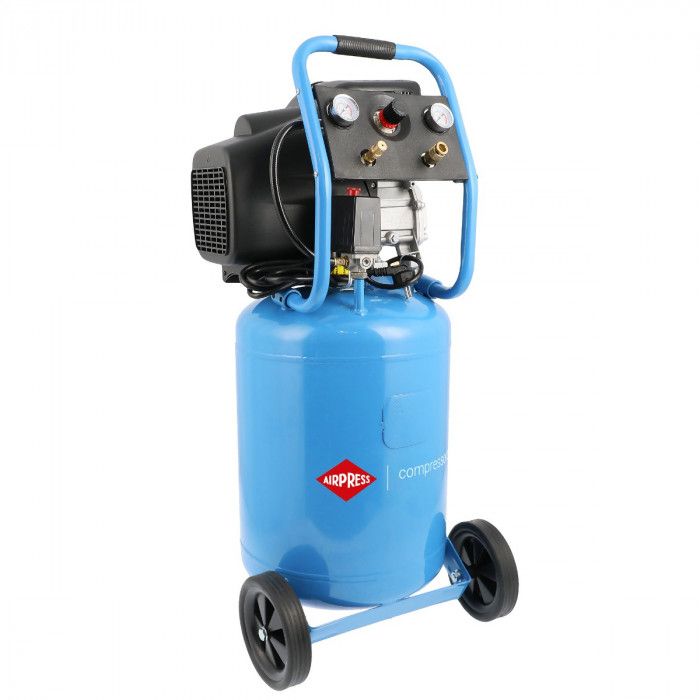

Standing Compressor 8 bar 2.5 hp 231 l/min 50 l HL 360-50

Nicht lieferbar

SKU 36852

Anfragen? E: info@airpress.de / (+49) 06353 9292924
Versand nach Österreich? Wechseln Sie zu airpress.at!

none

Details Empfohlen Unterlagen Alternativen Bewertungen Ersatzteile

Details

SKU	36852
EAN 13	8712418191462
Weight (netto) (kg)	36,5 kg
Gross weight (kg)	37 kg
Length (mm)	480 mm4,8 dm
Width (mm)	410 mm4,1 dm
Height (mm)	1.050 mm1,05 m
Drive	Direct driven 1:1
Start	Direct
Motor power (hp / kW)	2.5 HP / 1.8 kW
Cylinders	1
Stages	1
Pump speed (rpm)	2850
Air Receiver	Ja
Capacity air receiver (l)	50
Galvanized tank	Nein
Workload (labor/rest %)	30/70
Maximum pressure (bar)	8

Cut-in pressure (bar)	6 bar
Intake capacity (l/min)	288 L/m1,728 kL/s
Free air delivery (l/min)	231 L/m1,386 kL/s
Free air delivery (m3/h)	13,86 m³/h3,85 dm³/s
Noise level dB (A) (0 m)	97
Noise level dB(A) (4 m)	77
Noise level dB(A) (7 m)	72
Sound volume reduction	Nein
Connection type	Universal
Number of couplings air connections	1
Number of reducable couplings air connections	1
Oilfree	Nein
Voltage (V)	230 V / 50 Hz / 1 Ph
After cooler	Nein
Intercooler	Nein
Wheels	Ja
Filter with reducer	Nein
