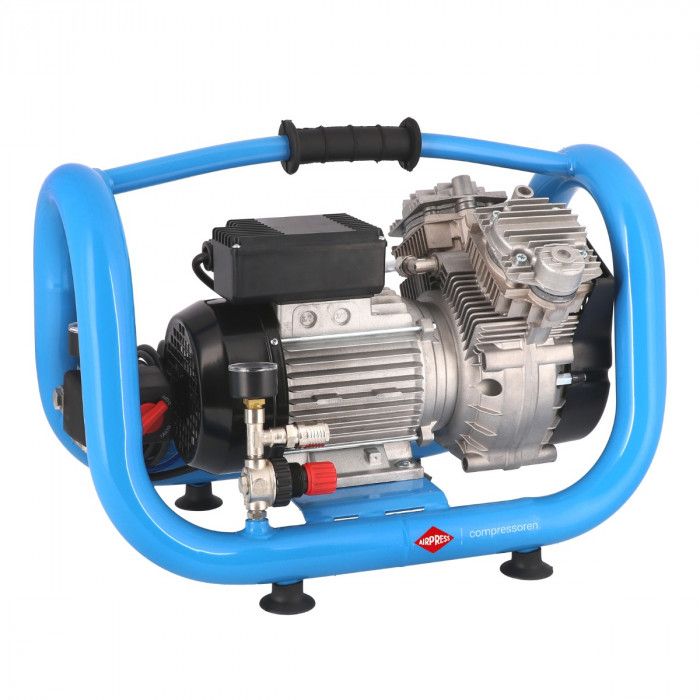

Silent oil free Compressor LMO 5-240 10 bar 1.5 hp 192 l/min 5 l
587,26 CHF
Inkl. MwSt.:
587,26 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
36575
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 36575 |
|---|---|
| EAN 13 | 8712418024449 |
| Weight (netto) (kg) | 23 kg |
| Length (mm) | 550 mm5,5 dm |
| Width (mm) | 340 mm3,4 dm |
| Height (mm) | 380 mm3,8 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 1.5 HP / 1.1 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1400 |
| Air Receiver | Ja |
| Capacity air receiver (l) | 5 |
| Galvanized tank | Nein |
| Workload (labor/rest %) | 20/80 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 240 L/m1,44 kL/s |
| Free air delivery (l/min) | 192 L/m1,152 kL/s |
| Free air delivery (m3/h) | 11,52 m³/h3,2 dm³/s |
| Noise level dB (A) (0 m) | 70 |
| Noise level dB(A) (4 m) | 50 |
| Noise level dB(A) (7 m) | 45 |
| Sound volume reduction | Ja |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Number of reducable couplings air connections | 1 |
| Oilfree | Ja |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | Nein |
| Intercooler | Nein |
| Wheels | Nein |
| Filter with reducer | Nein |
Unterlagen
Produktseite
Manual EN/FR/DE/NL/PL/CZ/EE/LV/RO/SK/ES/RU 36578,36577,36854,36862,360578,36504,36753,36747,36588,36587,36750,36738,36743,36741-K1,36943,36748,36576,36575
Manual EN/FR/NL/DE/PL 36575
Parts drawing 36575
Parts drawing for pump 36575
manual_36575_SET.pdf
OIL_FREE_COMPRESSORS_2025 - WEB.pdf
36575_Parts_list_ENG.pdf
