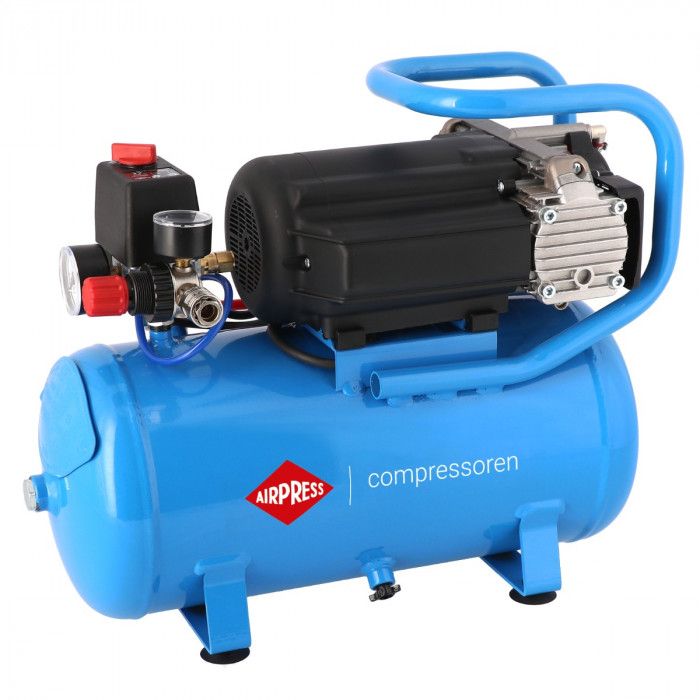

Silent oil free Compressor LMO 15-210 10 bar 0.75 hp 125 l/min 15 l
542,58 CHF
Inkl. MwSt.:
542,58 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
36750
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 36750 |
|---|---|
| EAN 13 | 8712418257410 |
| Weight (netto) (kg) | 17,5 kg |
| Length (mm) | 480 mm4,8 dm |
| Width (mm) | 220 mm2,2 dm |
| Height (mm) | 400 mm4 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 0.75 HP / 0.55 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 2800 |
| Air Receiver | Ja |
| Capacity air receiver (l) | 15 |
| Galvanized tank | Nein |
| Workload (labor/rest %) | 20/80 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 210 L/m1,26 kL/s |
| Free air delivery (l/min) | 125 L/m45 m³/min |
| Free air delivery (m3/h) | 7,5 m³/h2,083 dm³/s |
| Noise level dB (A) (0 m) | 74 |
| Noise level dB(A) (4 m) | 54 |
| Noise level dB(A) (7 m) | 49 |
| Sound volume reduction | Ja |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Number of reducable couplings air connections | 1 |
| Oilfree | Ja |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | Nein |
| Intercooler | Nein |
| Wheels | Nein |
| Filter with reducer | Nein |
