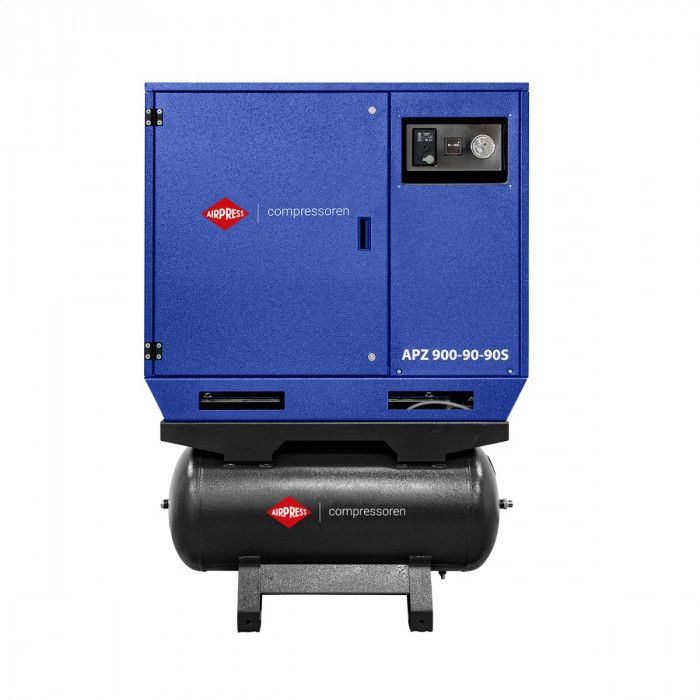

Silent Compressor APZ 900-90-90S 10 bar 7.5 hp/5.5 kW 611 l/min 2x 90 l star delta switch
4.677,15 CHF
Inkl. MwSt.:
4.677,15 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
34651-9090S
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 34651-9090S |
|---|---|
| EAN 13 | 8712418417050 |
| Length (mm) | 1038 |
| Width (mm) | 1027 |
| Height (mm) | 1460 |
| Weight (netto) (kg) | 193,75 |
| Workload (labor/rest %) | 60/40 |
| Start | Y-∆ |
| Drive | V-belt driven |
| Belt size | B66 |
| Flywheel diameter (mm) | 400 |
| Pulley diameter (mm) | 40 |
| Cylinders | 2 |
| Ampere (A) | 10.8 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Air Receiver | Ja |
| Capacity air receiver (l) | 2 x 90 |
| Galvanized tank | Nein |
| Intake capacity (l/min) | 872 |
| Free air delivery (l/min) | 611 |
| Free air delivery (m3/h) | 36.66 |
| Ambient temperature (°C) | 5℃ - 45℃ |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 |
|---|---|
| Main air connection (") | 1/2 |
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | - |
| Noise level dB (A) (0 m) | 68 |
| Noise level dB(A) (4 m) | 48 |
| Noise level dB(A) (7 m) | 43 |
| Sound volume reduction | Ja |
| Cable length (m) | 1.5 |
| Stages | 2 |
| Oil capacity (l) | 1.45 |
| Oilfree | Nein |
| Filter with reducer | Nein |
| Motor type | AC |
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
| Motor efficiency class | IE1 |
| IP classification | IP55 |
| Wheels | Nein |
| Pump speed (rpm) | 1200 |
| Pump Type | K30 |
| Intercooler | Ja |
| After cooler | Ja |
| Gross weight (kg) | 350 |
