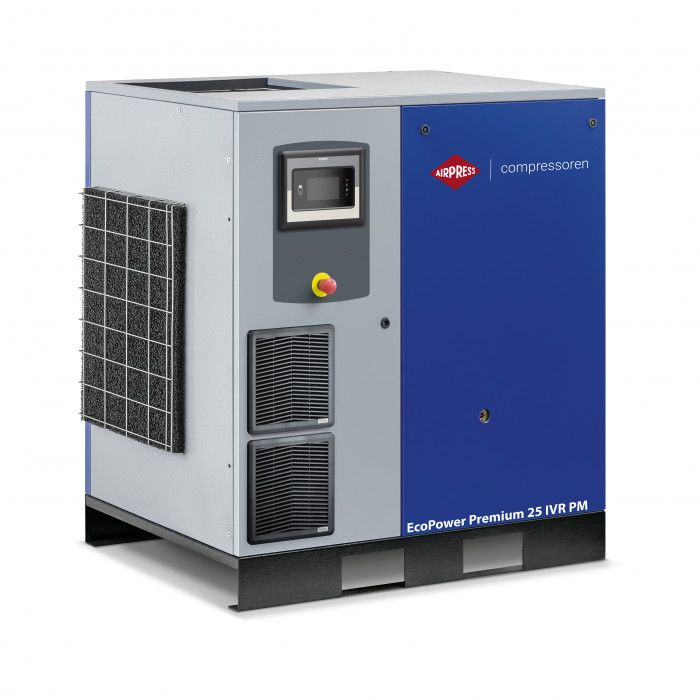

Screw compressor EcoPower Premium 25D IVR PM 13 bar 25 HP/18.5 kW 672 - 3503 l/min
17.640,77 CHF
Inkl. MwSt.:
17.640,77 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
36425-DD-PM
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 36425-DD-PM |
|---|---|
| EAN 13 | 8712418425871 |
| Units per product (pcs.) | 1 |
| Weight (netto) (kg) | 325 kg |
| Length (mm) | 1.200 mm1,2 m |
| Width (mm) | 835 mm8,35 dm |
| Height (mm) | 1.220 mm1,22 m |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor power (hp / kW) | 25.0 HP / 18.5 kW |
| Air-end | C67 |
| Variable speed (IVR) | Ja |
| Control panel | ES 4000 T TOUCHSCREEN |
| Air Receiver | Nein |
| Galvanized tank | Nein |
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 13 |
|---|---|
| Working pressure (bar) | 4 - 12.5 |
| Free air delivery at 7 bar (l/min) | 3.504 L/m5,84 L/h |
| Free air delivery at 9.5 bar (l/min) | 3.024 L/m5,04 L/h |
| Free air delivery at 10 bar (l/min) | 3.023 L/m5,038 L/h |
| Minimum free air delivery (l/min) | 672 L/m1,12 L/h |
| Minimum free air delivery (m3/h) | 40,3 m³/h1,866 L/m |
| Maximum free air delivery (l/min) | 3.504 L/m5,84 L/h |
| Maximum free air delivery (m3/h) | 210,2 m³/h3,503 m³/min |
| Noise level dB (A) (0 m) | 70 |
| Noise level dB(A) (4 m) | 50 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | Nein |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP54 |
