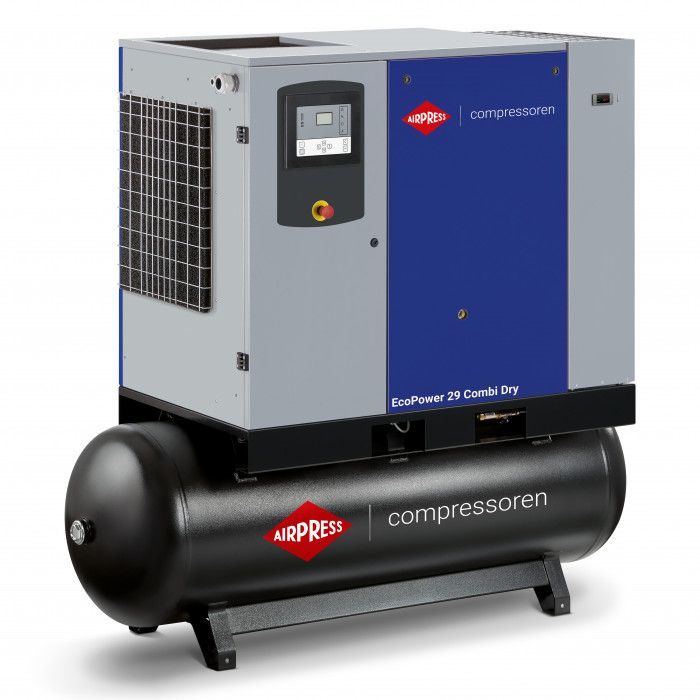

Screw compressor EcoPower 30D Combi Dry 10 bar 30 HP/22 kW 3294 l/min 500 l
19.053,82 CHF
Inkl. MwSt.:
19.053,82 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
36679529-D
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 36679529-D |
|---|---|
| EAN 13 | 8712418424416 |
| Units per product (pcs.) | 1 |
| Weight (netto) (kg) | 595 kg |
| Length (mm) | 1.940 mm1,94 m |
| Width (mm) | 835 mm8,35 dm |
| Height (mm) | 1.835 mm1,835 m |
| Drive | Gearbox |
| Start | Y-∆ |
| Motor power (hp / kW) | 30.0 HP / 22.0 kW |
| Air-end | C67 |
| Variable speed (IVR) | Nein |
| Control panel | ES 4000 STANDARD |
| Air Receiver | Ja |
| Capacity air receiver (l) | 500 |
|---|---|
| Galvanized tank | Nein |
| Dryer | Yes |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min) | 3.294 L/m5,49 L/h |
| Free air delivery (m3/h) | 198 m³/h3,3 m³/min |
| Noise level dB (A) (0 m) | 69 |
| Noise level dB(A) (4 m) | 49 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | Nein |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
