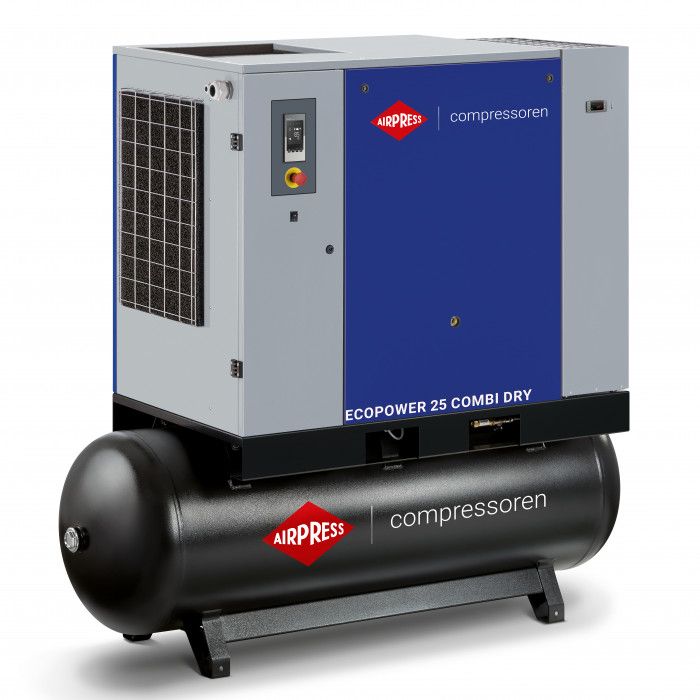

Screw compressor EcoPower 25B Combi Dry 10 bar 25 HP/18.5 kW 2700 l/min 500 l
16.799,73 CHF
Inkl. MwSt.:
16.799,73 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
36679525
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 36679525 |
|---|---|
| EAN 13 | 8712418423440 |
| Units per product (pcs.) | 1 |
| Weight (netto) (kg) | 603 kg |
| Length (mm) | 1.904 mm1,904 m |
| Width (mm) | 833 mm8,33 dm |
| Height (mm) | 1.832 mm1,832 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor power (hp / kW) | 25.0 HP / 18.5 kW |
| Air-end | C67 |
| Variable speed (IVR) | Nein |
| Control panel | ES 4000 CONNECT |
| Air Receiver | Ja |
| Capacity air receiver (l) | 500 |
|---|---|
| Galvanized tank | Nein |
| Dryer | Yes |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min) | 2.700 L/m4,5 L/h |
| Free air delivery (m3/h) | 162 m³/h2,7 m³/min |
| Noise level dB (A) (0 m) | 69 |
| Noise level dB(A) (4 m) | 49 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | Nein |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
