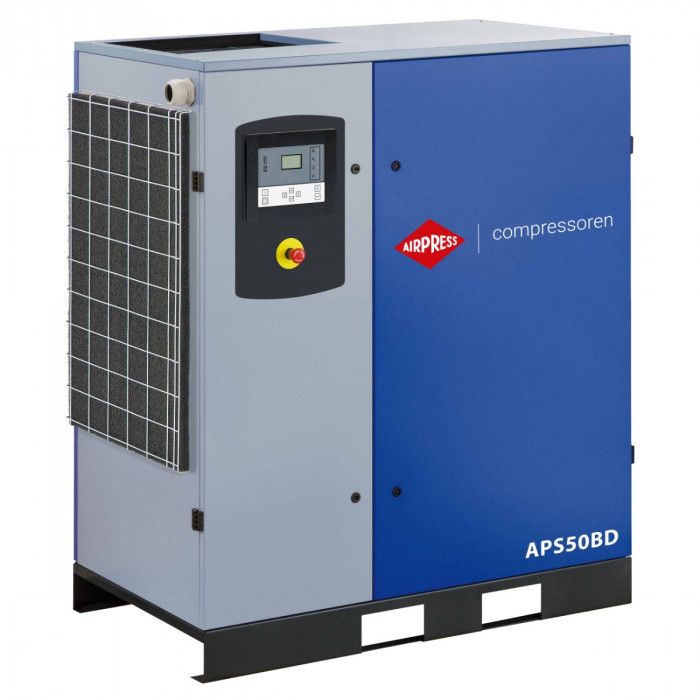

Screw Compressor APS50B Direct 10 bar 50 hp 5070 l/min
19.731,22 CHF
Inkl. MwSt.:
19.731,22 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
36450-BD
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 36450-BD |
|---|---|
| EAN 13 | 8712418359756 |
| Weight (netto) (kg) | 595 kg |
| Length (mm) | 1.320 mm1,32 m |
| Width (mm) | 830 mm8,3 dm |
| Height (mm) | 1.555 mm1,555 m |
| Drive | Gearbox |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 50.0 HP / 37.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C80 |
| Stages | 1 |
| Variable speed (IVR) | Nein |
| Control panel | ES 4000 STANDARD |
| Air Receiver | Nein |
| Galvanized tank | Nein |
|---|---|
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min) | 5.070 L/m8,45 L/h |
| Free air delivery (m3/h) | 304,2 m³/h5,07 m³/min |
| Noise level dB (A) (0 m) | 71 |
| Noise level dB(A) (4 m) | 51 |
| Main air connection (") | 1 1/4 |
| Minimum ambient temperature (°C) | 4 |
| Maximum ambient temperature (°C) | 46 |
| Oilfree | Nein |
| Oil capacity (l) | 18.50 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power cable | 4 x 35 mm2 |
