Screw compressor APS 50 2-stage IVR X 10 bar 50 HP / 37 kW 2780-7500 l/min
Nicht lieferbar

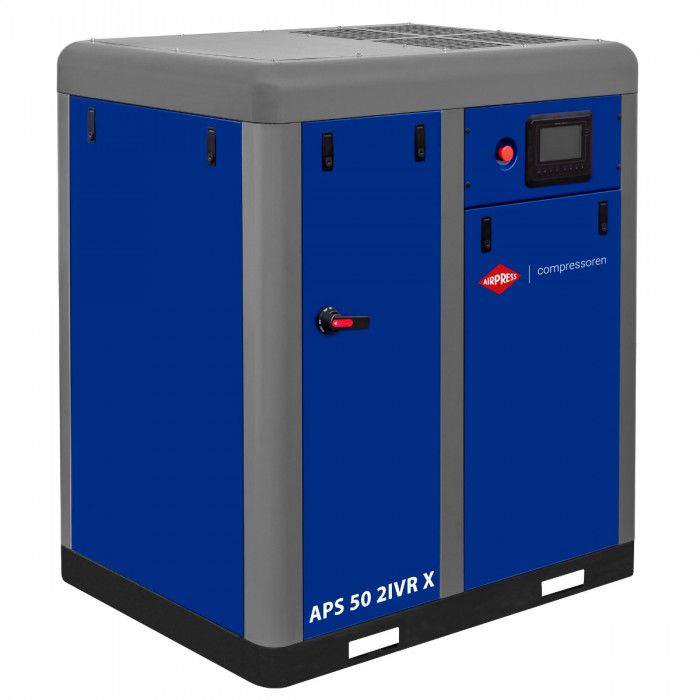

A powerful screw compressor with a capacity of 50 hp and 37kW from Airpress. The APS 50 X 2-Stage IVR compressor has a capacity of 6900 liters per minute at 8 bar and 5900 liters per minute at 10 bar. The compressor has a weight of 690 kg and is 135 x 100 x 135 cm in size.
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 369450-2IVR |
|---|---|
| EAN 13 | 8712418372397 |
| Length (mm) | 1450 |
| Width (mm) | 1050 |
| Height (mm) | 1518 |
| Weight (netto) (kg) | 690,00 |
| Units per product (pcs.) | 1 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 50 HP / 37 (2x18.5) kW |
| Motor efficiency class | IE4 |
| Motor type | PM |
| Drive | Direct driven 1:1 |
| Control panel | MAM-6090 |
| Available languages | English, Dutch, Polish, German |
| Dryer | No |
| Air Receiver | Nein |
| Galvanized tank | Nein |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 |
| Free air delivery at 7 bar (l/min) | 7500 |
| Free air delivery at 8 bar (l/min) | 7100 |
|---|---|
| Free air delivery at 9.5 bar (l/min) | 6450 |
| Minimum free air delivery (l/min) | 2780 |
| Minimum free air delivery (m3/h) | 166.8 |
| Maximum free air delivery (l/min) | 7500 |
| Maximum free air delivery (m3/h) | 450 |
| Noise level dB (A) (0 m) | 75 |
| Noise level dB(A) (4 m) | 55 |
| Plug type | EU |
| Cooling air volume (m3/h) | 10800 |
| Main air connection (") | 1 1/2 |
| Oilfree | Nein |
| Oil capacity (l) | 23 |
| Stages | 2 |
| Start | Inverter |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
| Variable speed (IVR) | Ja |
| Pump speed (rpm) | 2200/2400 |
Empfohlen
Beschreibung
A compressor with great qualities and characteristics. This machine is equipped with two-stage screw blocks that are directly linked to permanent magnet motors. The efficiency is improved by the ratio of 3: 1 between the 1st and 2nd stage and the reduction of the internal return leakage. This saving can be up to 15% compared to a single-stage screw block with the same air flow. This 37 kW compressor delivers a maximum of 6900 liters per minute. The higher purchase price is earned back within a few years by the proceeds. Thanks to the extensive adjustment options in the full color touchscreen, the maximum efficiency of the compressor can be achieved and the energy costs saved to the maximum. The temperature-controlled fan also uses no energy if it is not needed. The machine is very easily accessible due to the service panels placed around it. The machine has been carefully designed so that fewer parts are maintenance-sensitive. The service interval of 3,000 hours ensures lower maintenance costs. This machine is very suitable for large companies that have very varying air consumption, for example blasting or who want to get the most out of energy costs.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
