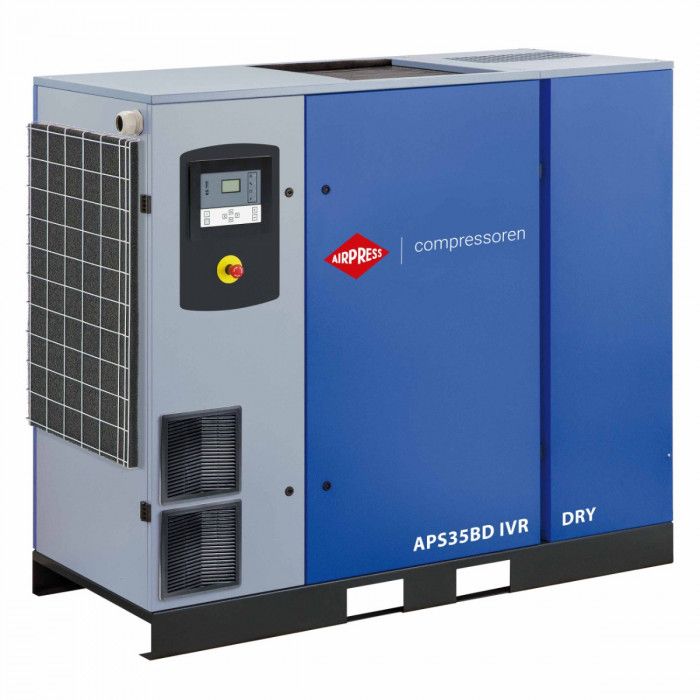

Screw Compressor APS 35BD IVR Dry 13 bar 35 hp/26 kW 767-4835 l/min

Nicht lieferbar

SKU 36435-BDX-IVR

Anfragen? E: info@airpress.de / (+49) 06353 9292924
Versand nach Österreich? Wechseln Sie zu airpress.at!

Details Empfohlen Unterlagen Bewertungen Ersatzteile

Details

SKU	36435-BDX-IVR
EAN 13	8712418347289
Weight (netto) (kg)	514 kg
Length (mm)	1.320 mm1,32 m
Width (mm)	830 mm8,3 dm
Height (mm)	1.555 mm1,555 m
Drive	Direct driven 1:1
Start	Inverter
Motor type	PM
Motor power (hp / kW)	35.0 HP / 26.0 kW
Motor efficiency class	IE3
Air-end	C80
Stages	1
Variable speed (IVR)	Ja
Minimum rpm 10 bar (rpm/Hz)	5.262 rpm1,462 rpm/Hz
Maximum rpm 10 bar (rpm/Hz)	7.768 rpm/Hz466,08 kHz
Control panel	ES 4000 STANDARD
Air Receiver	Nein

Galvanized tank	Nein
Dryer	Yes
Dryer voltage (V)	230
Cooling air volume (m3/h)	4.800 m³/h1,333 kL/s
Workload (labor/rest %)	100/0
Maximum pressure (bar)	13
Cut-in pressure (bar)	5,5 bar
Minimum free air delivery (l/min)	767 L/m1,278 L/h
Minimum free air delivery (m3/h)	46,02 m³/h2,131 L/m
Maximum free air delivery (l/min)	4.835 L/m8,058 L/h
Maximum free air delivery (m3/h)	290,1 m³/h4,835 m³/min
Noise level dB (A) (0 m)	68
Noise level dB(A) (4 m)	48
Main air connection (")	1
Oilfree	Nein
Plug type	EU
Voltage (V)	400 V / 50 Hz / 3 Ph
Power cable	4 x 25 mm2
