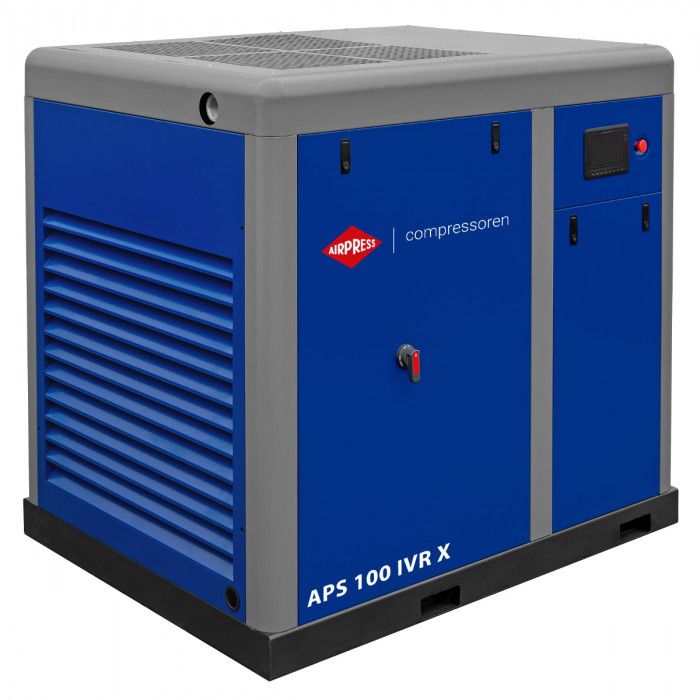

Screw Compressor APS 100 IVR X 10 bar 100 hp 4100-12400 l/min

Name: Screw Compressor APS 100 IVR X 10 bar 100 hp 4100-12400 l/min
SKU: 3694100-IVR
Price: 23269.40 CHF
Availability: OutOfStock

Nicht lieferbar

SKU 3694100-IVR

Details Empfohlen Unterlagen Bewertungen Ersatzteile

Details

SKU	3694100-IVR
EAN 13	8712418388299
Weight (netto) (kg)	1.250 kg1,25 mt
Length (mm)	1.772 mm1,772 m
Width (mm)	1.300 mm1,3 m
Height (mm)	1.578 mm1,578 m
Drive	Direct driven 1:1
Start	Inverter
Motor type	PM
Motor power (hp / kW)	100.0 HP / 75.0 kW
Motor efficiency class	IE4
Stages	1
Variable speed (IVR)	Ja
Minimum rpm 10 bar (rpm/Hz)	900 rpm15 Hz
Maximum rpm 10 bar (rpm/Hz)	2.700 rpm/Hz162 kHz
Minimum energy consumption 10 bar (kW/m3/h)	7.8
Maximum energy consumption 10 bar (kW/m3/h)	12.9
Control panel	MAM-6080
Available languages	Dutch, Polish, German, English
Air Receiver	Nein
Galvanized tank	Nein

Dryer	No
Cooling air volume (m3/h)	13.500 m³/h1,042 L/h
Workload (labor/rest %)	100/0
Maximum pressure (bar)	10
Cut-in pressure (bar)	6 bar
Free air delivery at 8 bar (l/min)	12.400 L/m20,667 L/h
Free air delivery at 10 bar (l/min)	10.700 L/m17,833 L/h
Minimum free air delivery (l/min)	4.100 L/m6,833 L/h
Minimum free air delivery (m3/h)	246 m³/h4,1 m³/min
Maximum free air delivery (l/min)	12.400 L/m20,667 L/h
Maximum free air delivery (m3/h)	744 m³/h12,4 m³/min
Noise level dB (A) (0 m)	85
Noise level dB(A) (4 m)	65
Main air connection (")	2
Minimum ambient temperature (°C)	10
Maximum ambient temperature (°C)	45
Oilfree	Nein
Oil capacity (l)	50
Plug type	EU
Voltage (V)	400 V / 50 Hz / 3 Ph
IP classification	IP55
