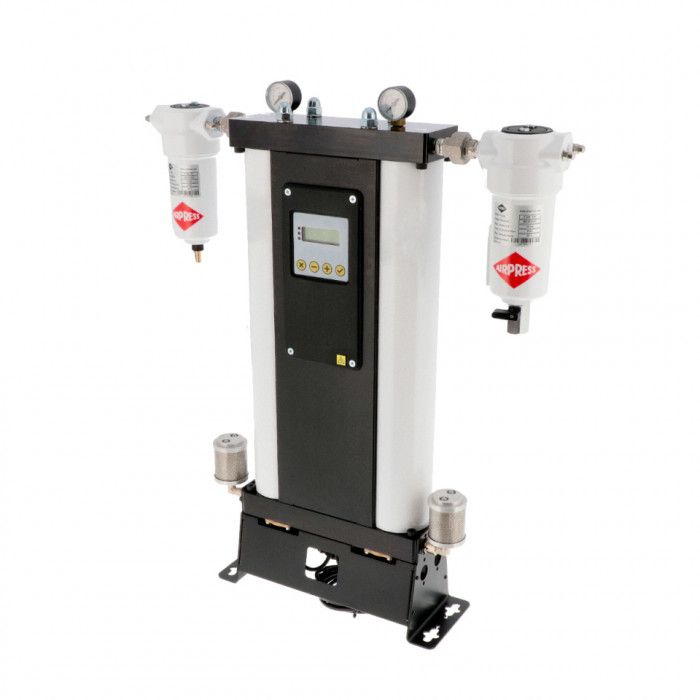

Adsorption Dryer ADS 36 600 l/min
2.982,52 CHF
Inkl. MwSt.:
2.982,52 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
39036
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 39036 |
|---|---|
| EAN 13 | 8712418335781 |
| Weight (netto) (kg) | 27,5 kg |
| Connection size (") | 3/8 |
| Pressure dew points (°C) | -40 (-25 / -70) |
| Working pressure (bar) | 4 - 16 |
| Nominal value flow inlet (Nm3/h) | 36 m³/h1,667 L/m |
| Nominal value flow inlet (l/min) | 600 L/m1 L/h |
| Nominal value flow outlet (Nm3/h) | 28,4 m³/h1,315 L/m |
| Nominal value flow outlet (l/min) | 473 L/m2,838 kL/s |
| Consumption for regeneration (l/min) | 127 L/m45,72 m³/min |
| Power consumption (W) | <40 |
|---|---|
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| IP classification | IP65 |
| Prefilter (type) | S filter - 0.01 µm |
| Postfilter (type) | R filter - 1 µm |
| Residual oil content (mg/m3) | <0.01 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 45 |
| Noise level dB (A) (0 m) | <100 |
| Distance sensor | Nein |
Unterlagen
Produktseite
Manual ADS / OFAG3 / OFAG 4
Parts drawing ADS 12 - 105
Parts drawing of non-return valves block ADS 12 - 105
Parts drawing of control valves block ADS 12 - 105
OFAG4_MANUAL 2025_MA_WEB.pdf
spare parts ads 39036.pdf
spare parts ads control valves block 39036.pdf
Parts_drawing_ADS_12_-_105.pdf
Parts_drawing_of_non-return_valves_block_ADS_12_-_105.pdf
Parts_drawing_of_control_valves_block_ADS_12_-_105.pdf
