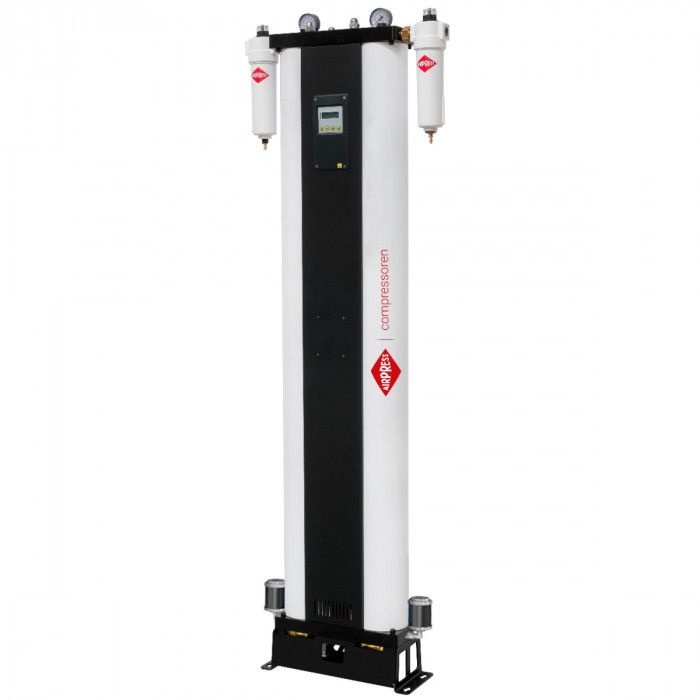

Adsorption Dryer ADS 150 2500 l/min
6.032,95 CHF
Inkl. MwSt.:
6.032,95 CHF
Inkl. MwSt.:
Inkl. MwSt.:
Nicht lieferbar
SKU
39150
- Anfragen? E: info@airpress.de / (+49) 06353 9292924
- Versand nach Österreich? Wechseln Sie zu airpress.at!
Details
| SKU | 39150 |
|---|---|
| EAN 13 | 8712418335811 |
| Weight (netto) (kg) | 170,5 kg |
| Connection size (") | 1 |
| Pressure dew points (°C) | -40 (-25 / -70) |
| Working pressure (bar) | 4 - 16 |
| Nominal value flow inlet (Nm3/h) | 150 m³/h2,5 m³/min |
| Nominal value flow inlet (l/min) | 2.500 L/m4,167 L/h |
| Nominal value flow outlet (Nm3/h) | 118 m³/h1,967 m³/min |
| Nominal value flow outlet (l/min) | 1.967 L/m3,278 L/h |
| Consumption for regeneration (l/min) | 533 L/m3,198 kL/s |
| Power consumption (W) | <70 |
|---|---|
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| IP classification | IP 65 |
| Prefilter (type) | S filter - 0.01 µm |
| Postfilter (type) | R filter - 1 µm |
| Residual oil content (mg/m3) | <0.01 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 45 |
| Noise level dB (A) (0 m) | <100 |
| Distance sensor | Nein |
